Sensoren
Unser Sortiment deckt ein breites Spektrum ab: UV-C-Photodioden (200–290 nm), Si-basierte Lösungen (350–1150 nm) und InGaAs-basierte Detektoren (600–1700 nm).
Eine Übersicht verfügbarer Gehäusevarianten für Fotodioden und Fototransistoren finden Sie hier. Aktuelle Lagerware finden Sie in unserer Lagerliste.

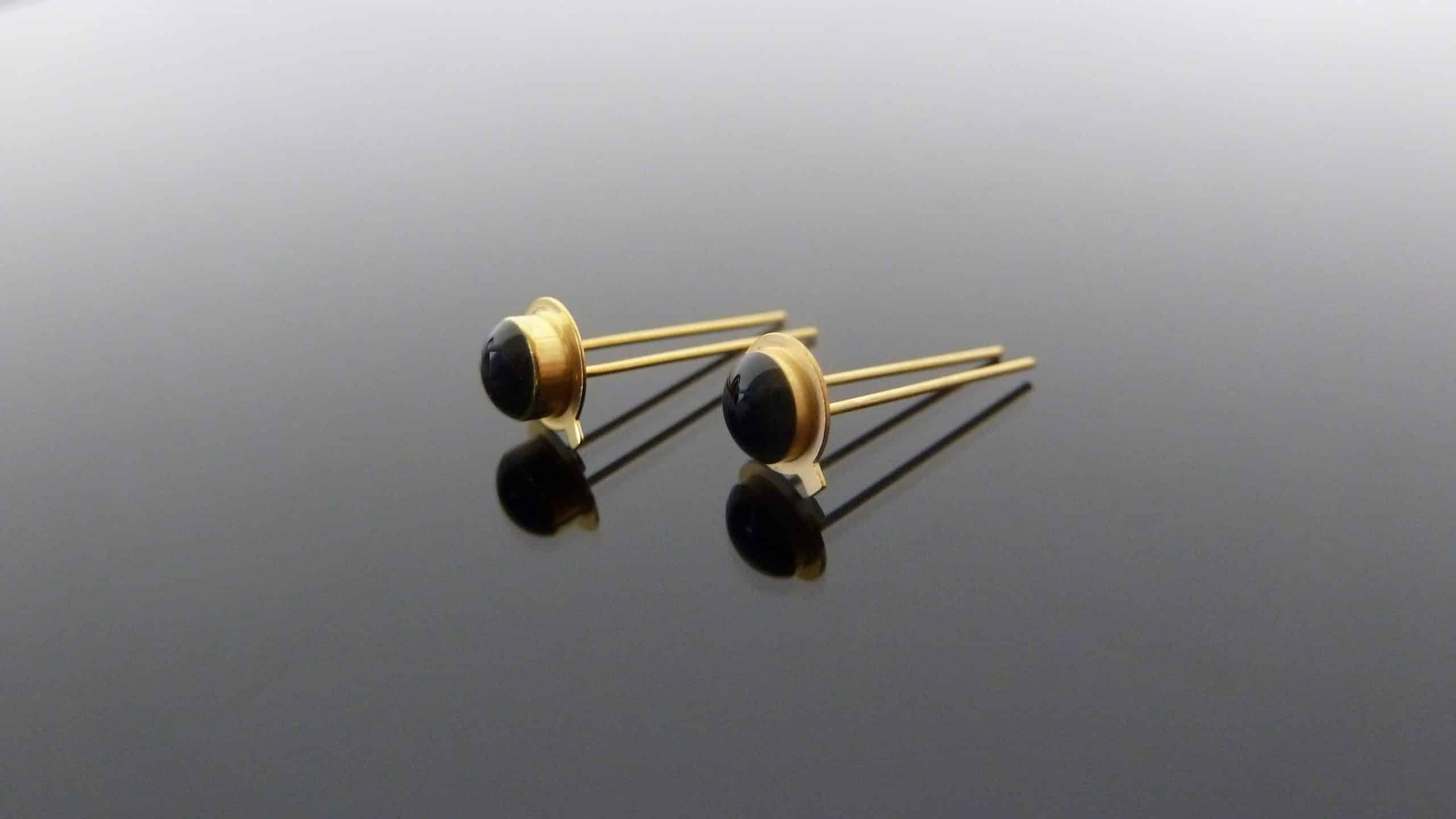

Fotodioden
Hier finden Sie eine Übersicht über unsere Fotodioden:
| Part Number | Peak wavelength [nm] | Full Response Angle [°] | Range of Spectral Bandwidth λ0.1 [nm] | Package Type | Comments | Datasheet |
|---|---|---|---|---|---|---|
| CSR67851PAN | 860nm | 04 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode verry narrow response angle of 4 degree mountable in row with 5mm distance Daylight filtered black housing |  |
| CSR67851PBN | 860nm | 07 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode verry narrow response angle of 5 degree mountable in row with 5mm distance Daylight filtered black housing | |
| CSR67851PCN | 860nm | 12 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode verry narrow response angle of 12 degree mountable in row with 5mm distance Daylight filtered black housing | |
| CSR67871TBR | 860nm | 08 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode narrow response angle of 8 degree mountable in row with 5mm distance | |
| CSR67861TBR | 860nm | 08 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode narrow response angle of 8 degree mountable in row with 5mm distance reflowable version available | |
| CSR67821TBK | 860nm | 10 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode narrow response angle of 10 degree mountable in row with 5mm distance | |
| CSR67861TCG | 860nm | 17 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode Response angle of 17 degree with wide tip mountable in row with 5mm distance reflowable version available | |
| CSR67861TDG | 860nm | 20,5 degree | 720nm - 1100nm | THD ⌀ 4,8X4,72mmX8,6mm | PIN-Photodiode Response angle of 20,5 degree with wide tip mountable in row with 5mm distance reflowable version available | |
| CSR57881PEH | 860nm | 25 degree | 720nm - 1100nm | THD ⌀ 4,8/5,02mm | PIN-Photodiode Response angle of 25 degree with wide tip response characteristic - wide plateau; typ. 15° >95% | |
| CSR57881PEH-TC | 860nm | 25 degree | 720nm - 1100nm | THD ⌀ 4,8/5,02mm | PIN-Photodiode bended Leads ; THD, SMT version available typ. 25 degree response angle response characteristic - wide plateau; typ. 15° >95% | |
| CSR57581PHH | 860nm | 40 degree | 720nm - 1100nm | THD ⌀ 4,8/5,02mm | PIN-Photodiode Response angle of 40 degree with tarped tip | |
| CSR3815TGG | 900nm | 35 degree | 720nm - 1100nm | THD T1 3/4 | PIN-Photodiode Response angle of 35 degree Short conic package Daylight filtered black housing | |
| CST38211TVG | 860nm | 125 degree | 720nm - 1100nm | THD T1 (3mm) | PIN-Photodiode Response angle of 125 degree Short cylindrical package Daylight filtered black housing | |
| CSR17011PQG | 900nm | 82 degree | 720nm - 1100nm | THD cylindrical ⌀ 4,95 | PIN-Photodiode Response angle of 82 degree Short cylindrical package Daylight filtered black housing | |
| CSA92003TEV UV-C Photodiode | 230nm | 23 degree | 200nm - 550nm | SMD | UVC Photodiode Response angle of 23 degree Reflowable | |
Fototransistoren
Hier finden Sie eine Übersicht über unsere Fototransistoren:
| Part Number | Peak wavelength [nm] | Full Response Angle [°] | Range of Spectral Bandwidth λ0.1 [nm] | Package Type | Comments | Datasheet |
|---|---|---|---|---|---|---|
| CSM28491PEK | 860nm | 25 degree | 720nm - 1150nm | SMD Chiplens | SMD Phototransistor with separate Base Response angle of 25 degree Current Gain ß : 1000 | |
| CSR38531PCK | 860nm | 15 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 15 degree with narrow tip Current Gain ß : 1000 mountable in row with 5mm distance | |
| CSR68581PBK | 860nm | 8 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 8 degree with a pointed tip Current Gain ß : 1000 | |
| CSM63851PEK- CSM63854PEK | 900nm | 25 degree | 720nm - 1150nm | SMD Chiplens | SMD Phototransistor with separate Base Response angle of 25 degree Current Gain ß selected groups mountable in row with 5mm distance | |
| CSR38461PFK | 860nm | 30 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 30 degree Current Gain ß : 500-1000 mountable in row with 5mm distance | |
| CSR38471PFK | 860nm | 30 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 30 degree Current Gain ß : 800-1300 mountable in row with 5mm distance | |
| CSR38481PFK | 860nm | 30 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 30 degree Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR38491PGK | 860nm | 35 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 35 degree with wide tip, typ. 20° >90% Current Gain ß : 500-1000 mountable in row with 5mm distance | |
| CSR38501PGK | 860nm | 35 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 35 degree with wide tip, typ. 20° >90% Current Gain ß : 800-1300 mountable in row with 5mm distance | |
| CSR38511PGK | 860nm | 35 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 35 degree with wide tip, typ. 20° >90% Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR38431PEK | 860nm | 25 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 25 degree Current Gain ß : 500-1000 mountable in row with 5mm distance | |
| CSR38441PEK | 860nm | 25 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 25 degree Current Gain ß : 800-1300 mountable in row with 5mm distance | |
| CSR38451PEK | 860nm | 25 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Response angle of 25 degree Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR68491PHK | 860nm | 40 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 40 degree Current Gain ß : 500-1000 mountable in row with 5mm distance | |
| CSR68501PHK | 860nm | 40 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 40 degree Current Gain ß : 800-1300 mountable in row with 5mm distance | |
| CSR68511PHK | 860nm | 40 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 40 degree Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR68521PDK | 860nm | 18 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 18 degree Current Gain ß : 500-1000 mountable in row with 5mm distance | |
| CSR68531PDK | 860nm | 18 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 18 degree Current Gain ß : 800-1300 mountable in row with 5mm distance | |
| CSR68541PDK | 860nm | 18 degree | 720nm - 1150nm | THD ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 18 degree Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR38511PGK-FC | 860nm | 35 degree | 720nm - 1150nm | THD cylindrical 4,8mm | Phototransistor with separate Base Radiation direction parallel to the mounting plane Response angle of 35 degree with wide tip, typ. 20° >90% Current Gain ß : 1000-1800 mountable in row with 5mm distance | |
| CSR78011-31PHK | 860nm | 36 degree | 700nm - 1150nm | THD 1,27mm Leadframe ⌀ 4,8X4,72mmX8,6mm | Phototransistor with separate Base Response angle of 18 degree Current Gain ß : 500-1800 mountable in row with 5mm distance | |
