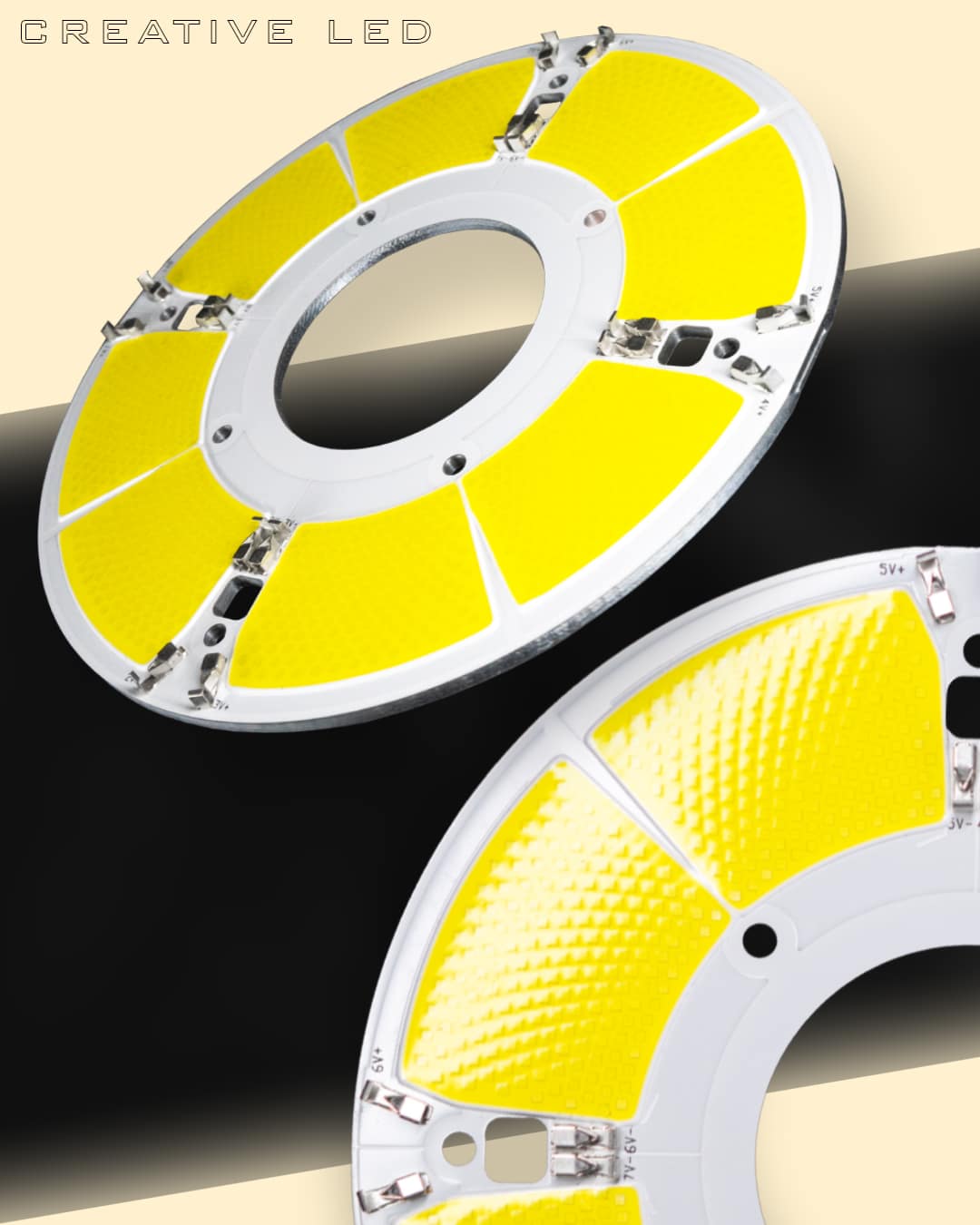

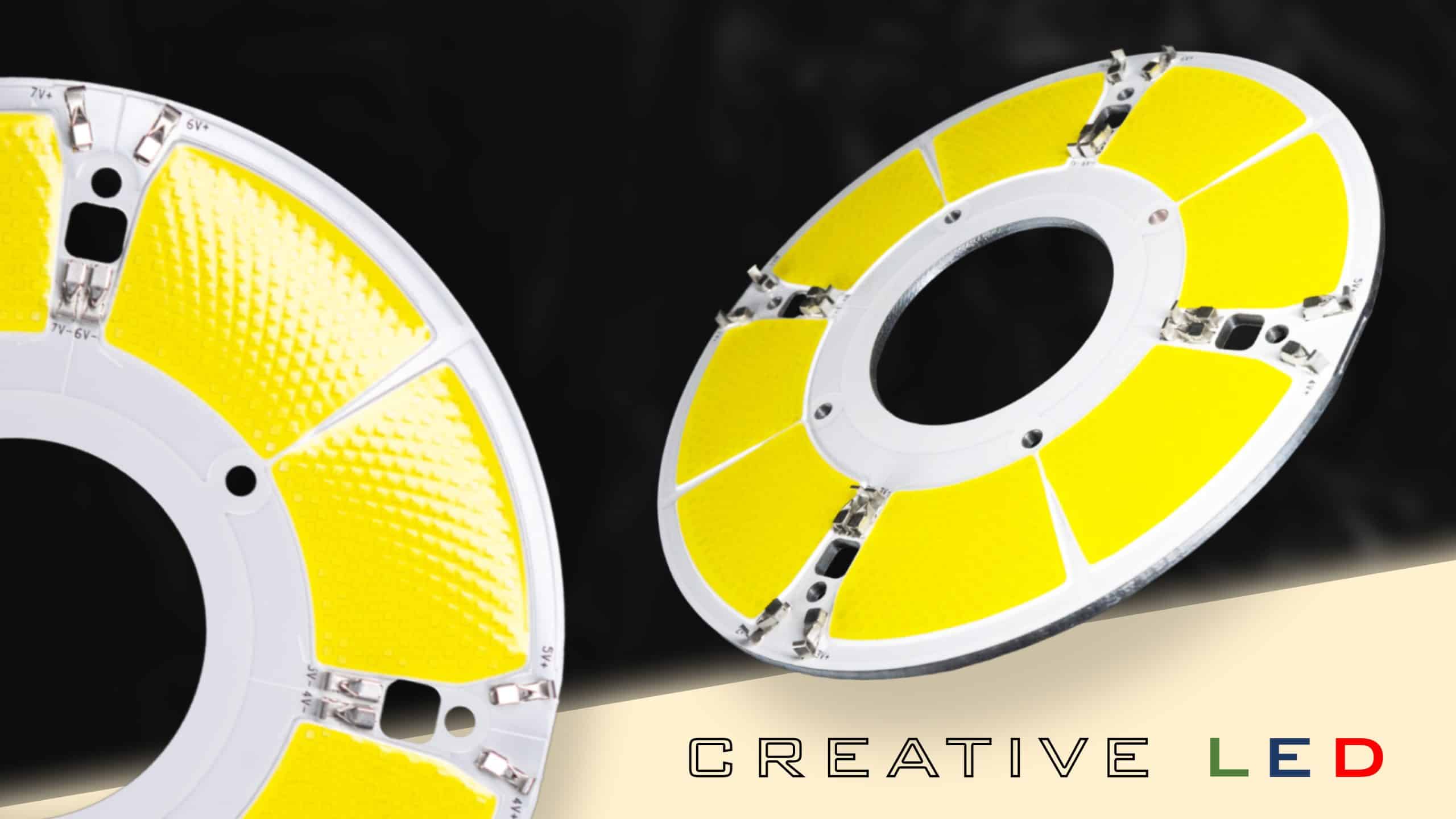

High brightness Modules
for industrial machine vision, monitoring and surveillance camera systems upto 150000 Lumen@115mm diameter including 40mm dia hole for camera objectives.
Customized inquires for another sizes, brightness and colour temperature are welcome.
| Part Number | λdom [nm] | VF [V] | IE [lm] | 2Φ0.5 [°] | CCT [K] | Condition | Package | Comments |
|---|---|---|---|---|---|---|---|---|
| CQV28910W150F-WC | cold white | 38 - 48 V | 150000 lm | 150 degree | 5000 - 6000 K | @500 mA | MCPCB ⌀ 115mm | homogeneous brightness and color temperature on the whole module |
| CQV28910W120F-WC | cold white | 38 - 48 V | 120000 lm | 150 degree | 5000 - 6000 K | @500 mA | MCPCB ⌀ 100mm | homogeneous brightness and color temperature on the whole module |
You are interested in our modules; Download the datasheet
If you have any questions or special inquires please get in contact with us
